Work Session

September 1, 2018



To join the fun, contact the railroad at: WorkSession @ RedRiverAndGulf.net (no spaces)



Team:
Mike Miller
Robert Stokes (staff)


The really good news is that it is now obvious that the pistons and valves are now free and the engine would have rolled without removing the main and eccentric rods.  However, it is better that we move it this way.  It is interesting that the engineer's side main crankpin is original with the Baldwin shop numbers on it.  The fireman's side main crankpin however,  is a real issue.  It is obviously off of another engine and was reworked for this locomotive at some time and would need some work to get it to pass FRA today.



-Mike Miller

    RRG 106 Project Team Lead

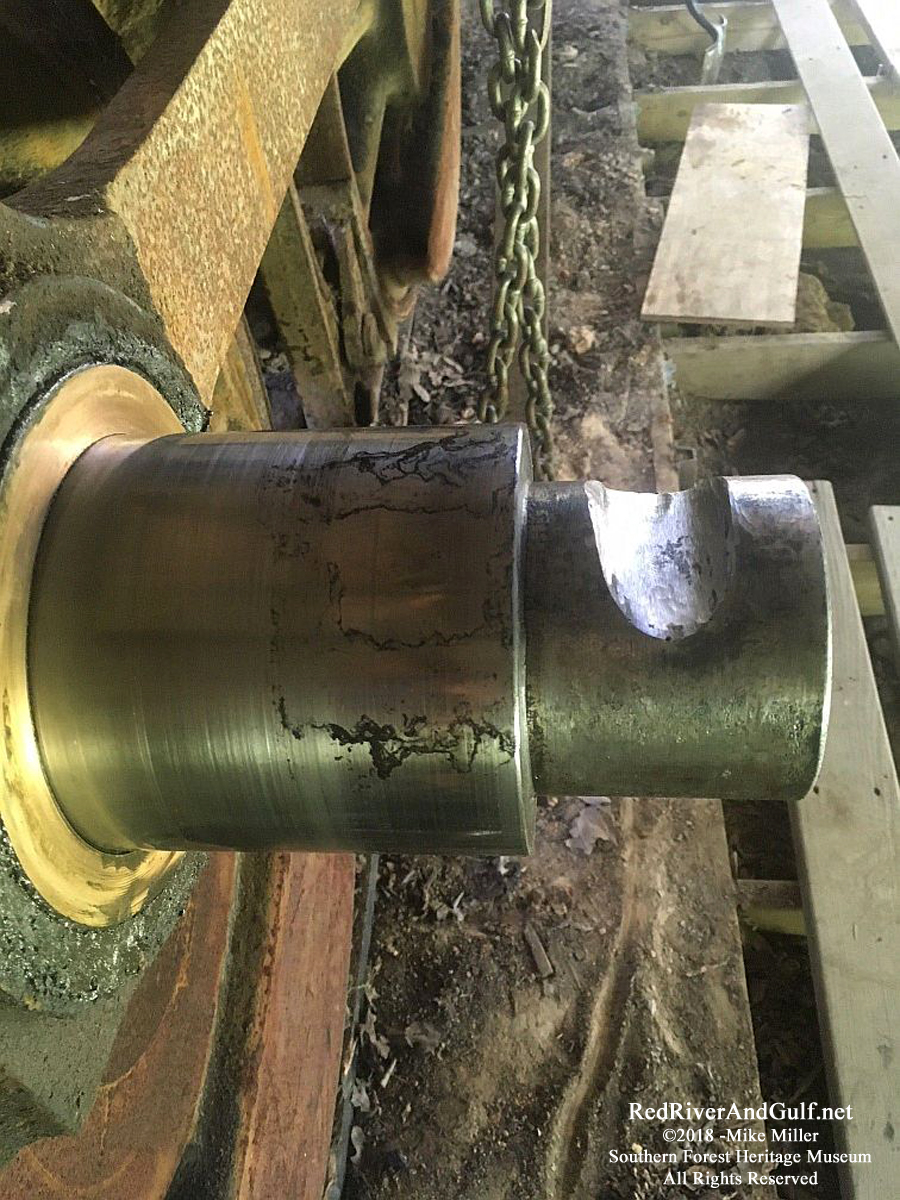

 Engineers side main crankpin

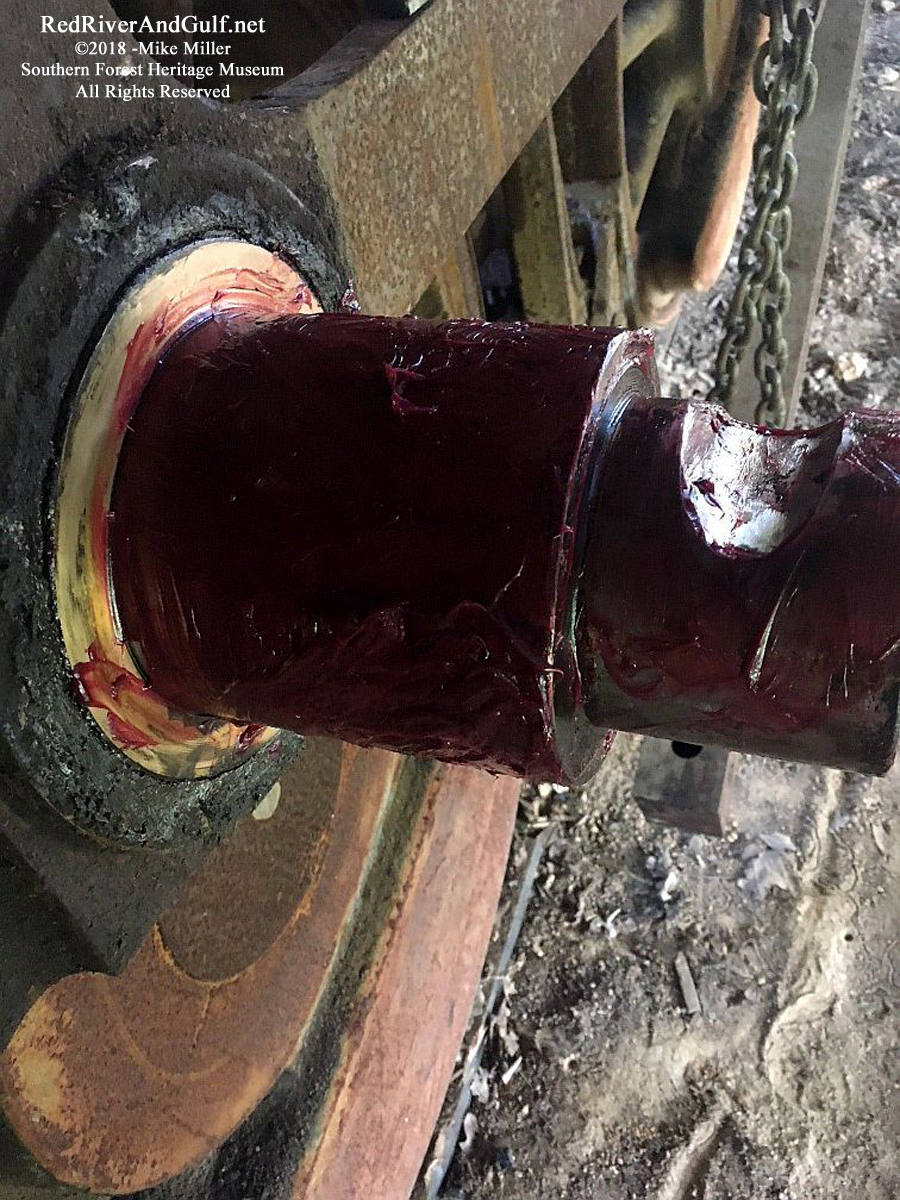

 Engineers side main crankpin  greased before covering

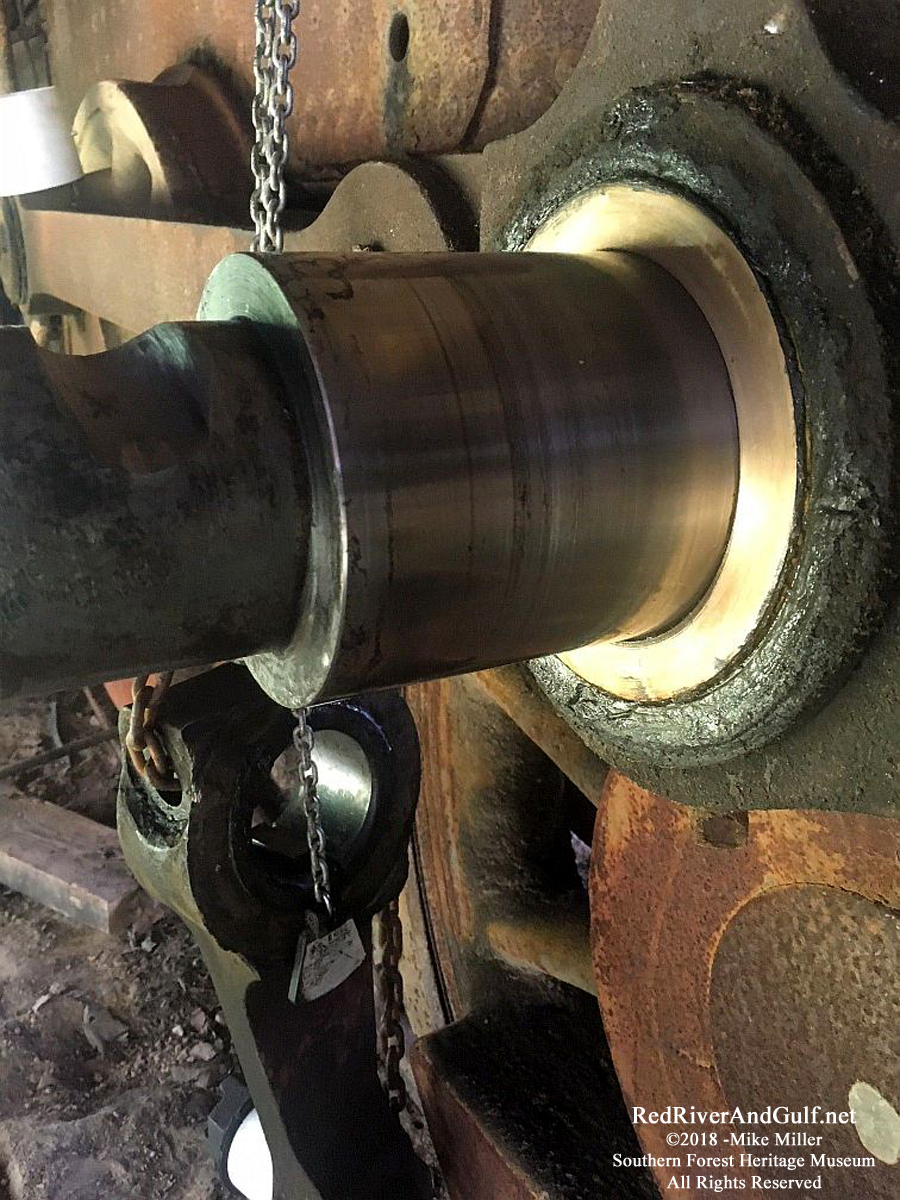

 Engineers side main crankpin

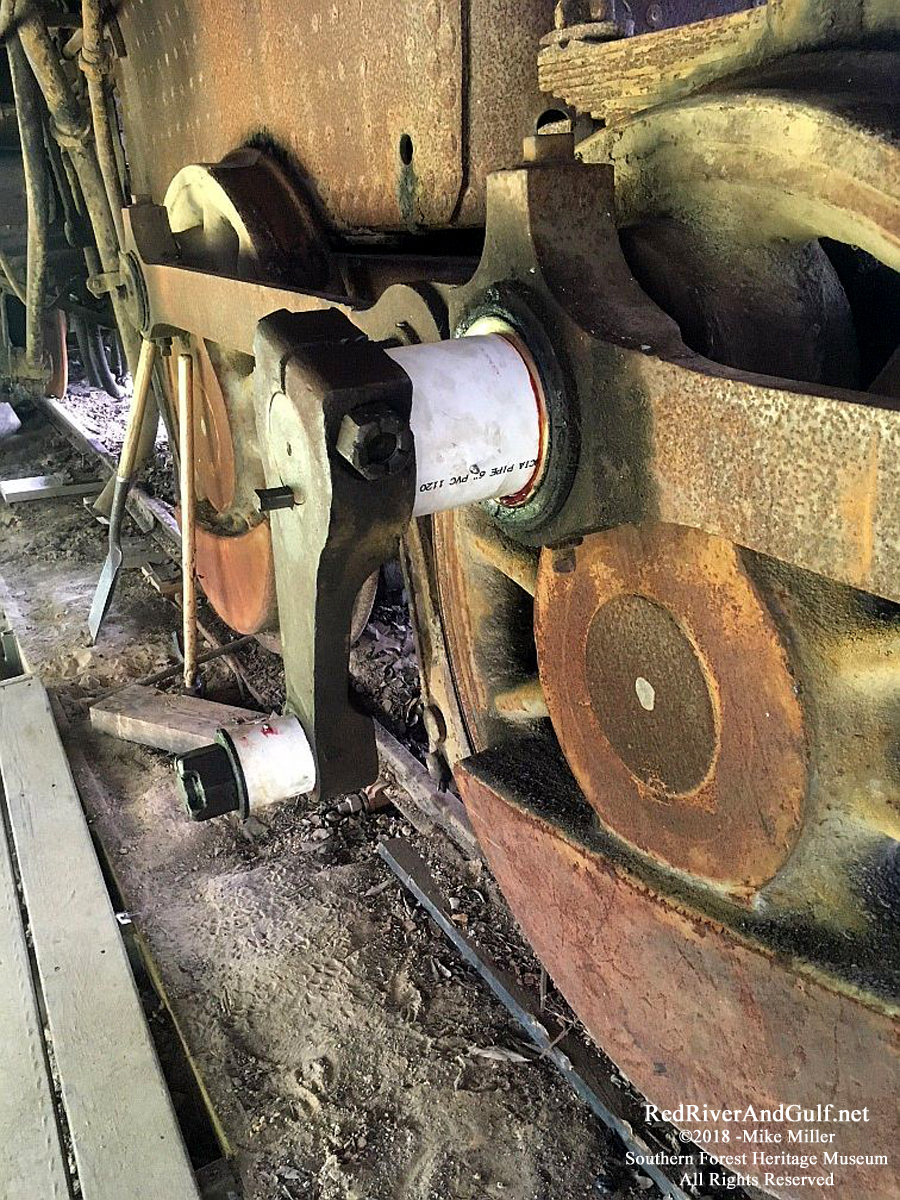

 Engineers side main crankpin before  eccentric removal



 Engineers side main crankpin with  original Baldwin shop numbers small

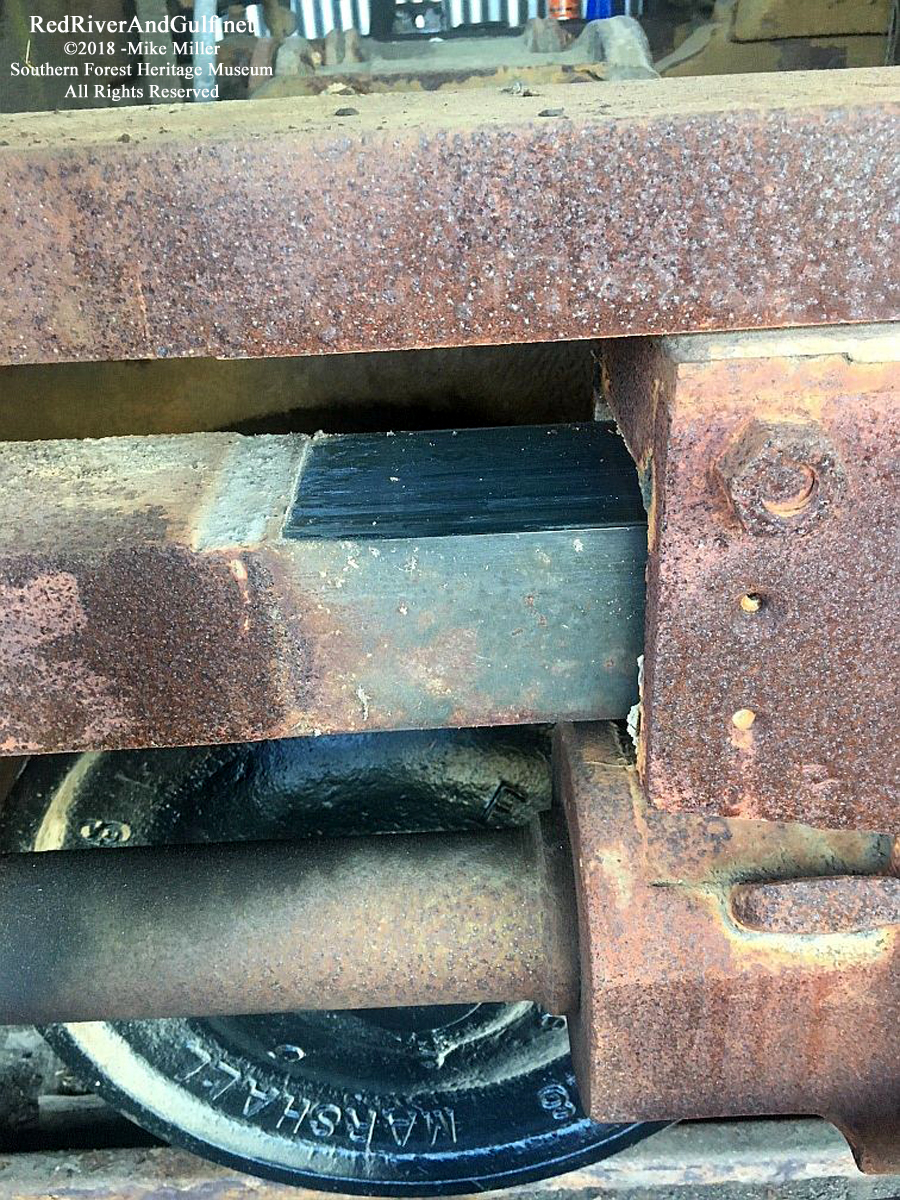

 Firemans side crosshead guide after  moving a quarter turn

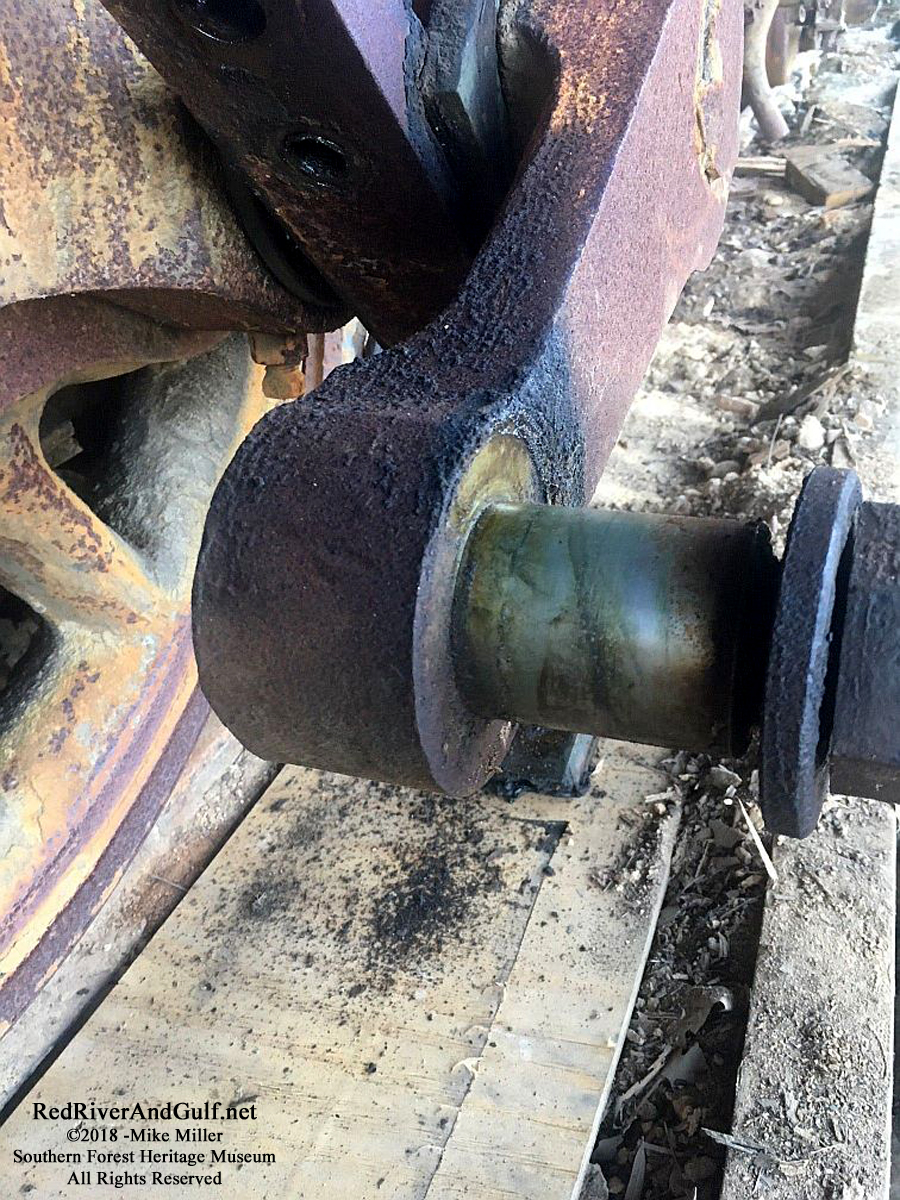

 Firemans side eccentric crank

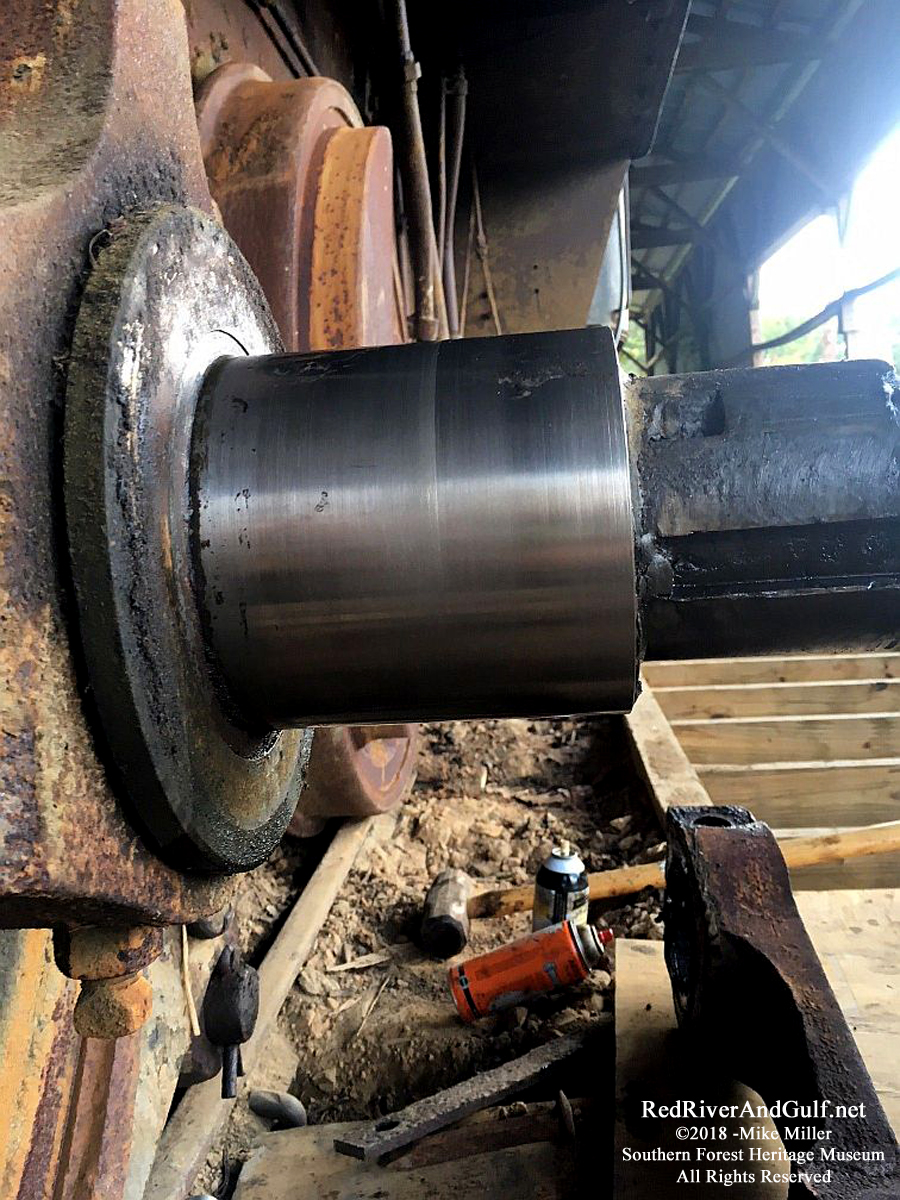

 Firemans side main crankpin



 Firemans side main crankpin 3 (note  slot for eccentric crank bolt

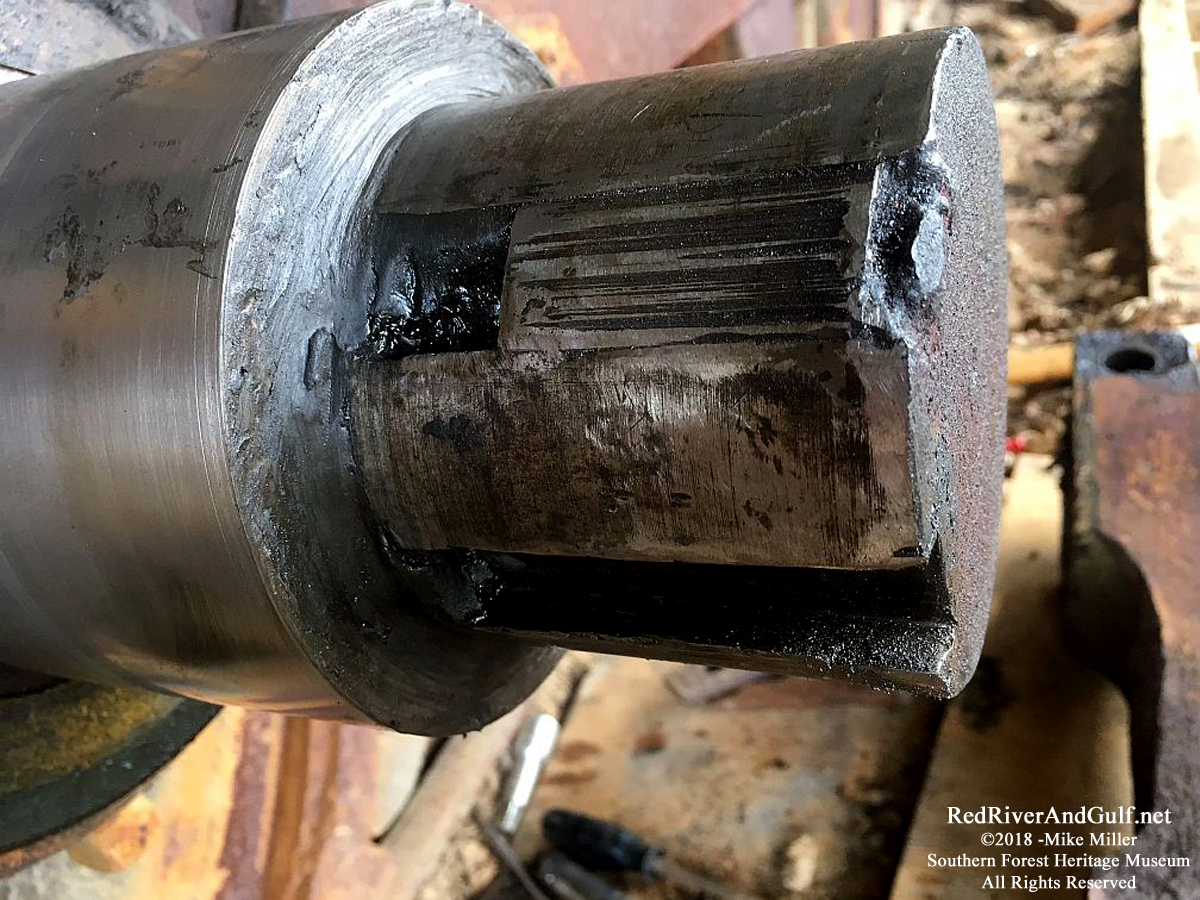

 Firemans side main crankpin and  filled keyway small

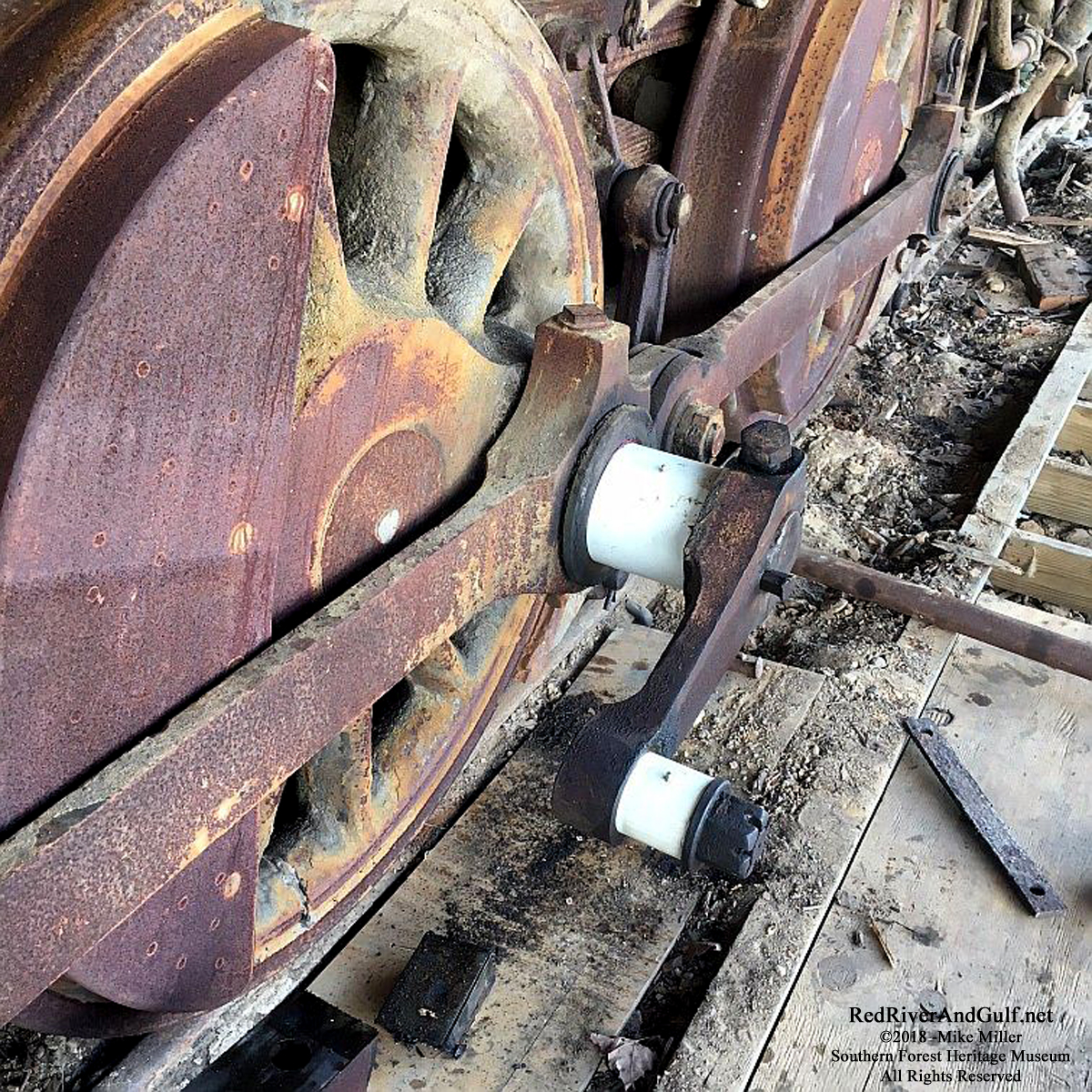

 Firemans side main crankpin before  eccentric crank removal small

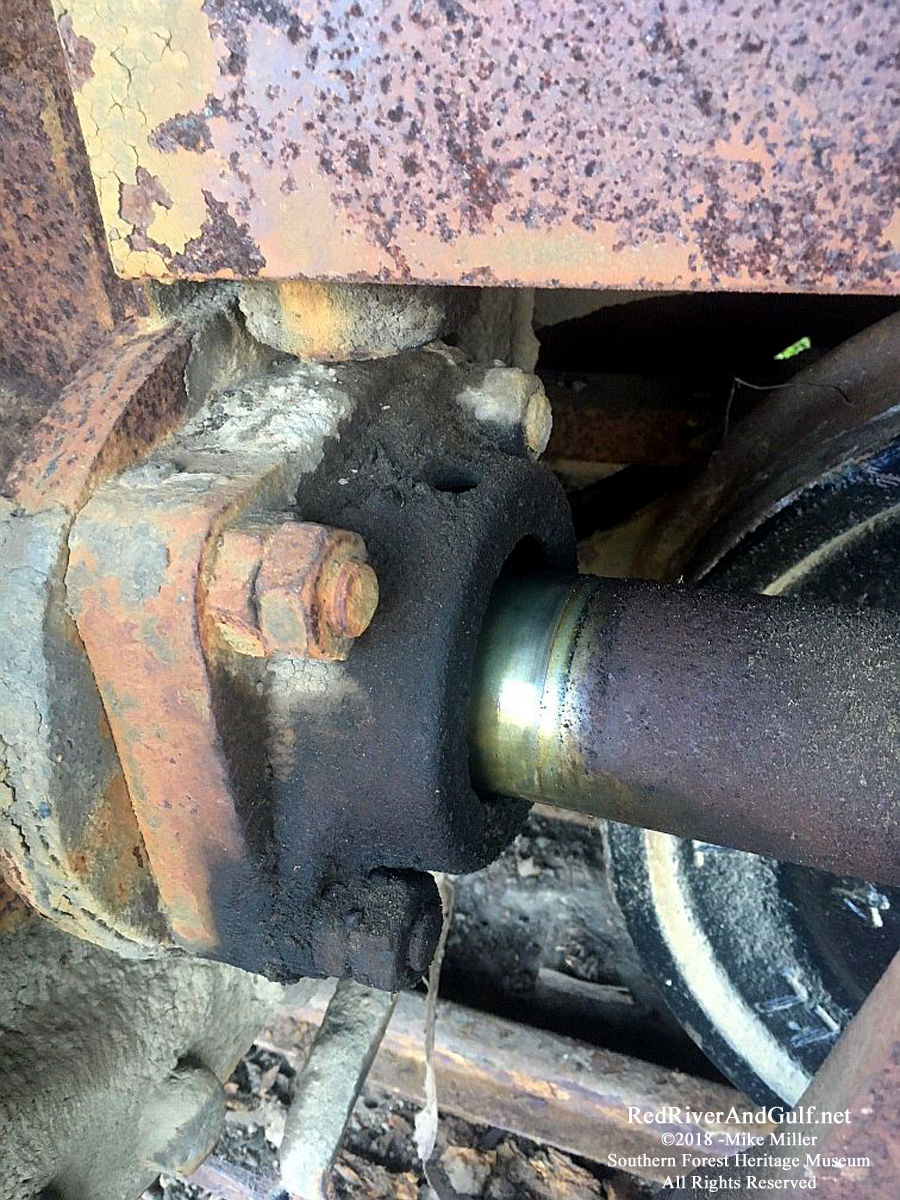

 Firemans side piston rod is shiny  after moving for the first time in 73 years



 Engineers side crankpin and  eccentric crank after removal of crank
